使用Android Studio开发FFmpeg的正确姿势

  • 2018-04-21: 更新至 ffmpeg-4.0
  • 2018-11-16: 更新腳本

使用AndroidStudio 开发 FFmpeg
Keywords: gradle, cmake
关键步骤，编译FFmpeg，Android Studio 集成。

abi support: armeabi-v7a arm64-v8a x86 x86_64
ndk version android-ndk-r14b

export NDK_HOME=/opt/android/android-ndk-r14b
export HOST_PLATFORM=linux-x86_64

第一步，编译ffmpeg

首先下载并解压

1
2
wget https://ffmpeg.org/releases/ffmpeg-4.0.tar.bz2
tar xvf ffmpeg-4.0.tar.bz2

然后编写编译脚本

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
#!/bin/sh

PREFIX=android-build
HOST_PLATFORM=linux-x86_64

COMMON_OPTIONS="\
	--target-os=android \
	--disable-static \
	--enable-shared \
	--enable-small \
	--disable-programs \
	--disable-ffmpeg \
	--disable-ffplay \
	--disable-ffprobe \
	--disable-doc \
	--disable-symver \
	--disable-asm \
	--enable-decoder=vorbis \
	--enable-decoder=opus \
	--enable-decoder=flac
	"

build_all(){
	for version in armeabi-v7a arm64-v8a x86 x86_64; do
		echo "======== > Start build $version"
		case ${version} in
		armeabi-v7a )
			ARCH="arm"
			CPU="armv7-a"
			CROSS_PREFIX="$NDK_HOME/toolchains/arm-linux-androideabi-4.9/prebuilt/$HOST_PLATFORM/bin/arm-linux-androideabi-"
			SYSROOT="$NDK_HOME/platforms/android-21/arch-arm/"
			EXTRA_CFLAGS="-march=armv7-a -mfpu=neon -mfloat-abi=softfp -mvectorize-with-neon-quad"
			EXTRA_LDFLAGS="-Wl,--fix-cortex-a8"
		;;
		arm64-v8a )
			ARCH="aarch64"
			CPU="armv8-a"
			CROSS_PREFIX="$NDK_HOME/toolchains/aarch64-linux-android-4.9/prebuilt/$HOST_PLATFORM/bin/aarch64-linux-android-"
			SYSROOT="$NDK_HOME/platforms/android-21/arch-arm64/"
			EXTRA_CFLAGS=""
			EXTRA_LDFLAGS=""
		;;
		x86 )
			ARCH="x86"
			CPU="i686"
			CROSS_PREFIX="$NDK_HOME/toolchains/x86-4.9/prebuilt/$HOST_PLATFORM/bin/i686-linux-android-"
			SYSROOT="$NDK_HOME/platforms/android-21/arch-x86/"
			EXTRA_CFLAGS=""
			EXTRA_LDFLAGS=""
		;;
		x86_64 )
			ARCH="x86_64"
			CPU="x86_64"
			CROSS_PREFIX="$NDK_HOME/toolchains/x86_64-4.9/prebuilt/$HOST_PLATFORM/bin/x86_64-linux-android-"
			SYSROOT="$NDK_HOME/platforms/android-21/arch-x86_64/"
			EXTRA_CFLAGS=""
			EXTRA_LDFLAGS=""
		;;
		esac

		echo "-------- > Start clean workspace"
		make clean

		echo "-------- > Start config makefile"
		configuration="\
            --prefix=${PREFIX} \
            --libdir=${PREFIX}/libs/${version}
            --incdir=${PREFIX}/includes/${version} \
            --pkgconfigdir=${PREFIX}/pkgconfig/${version} \
            --arch=${ARCH} \
            --cpu=${CPU} \
            --cross-prefix=${CROSS_PREFIX} \
            --sysroot=${SYSROOT} \
            --extra-ldexeflags=-pie \
            ${COMMON_OPTIONS}
		    "

		echo "-------- > Start config makefile with ${configuration}"
		./configure ${configuration}

		echo "-------- > Start make ${version} with -j8"
		make j8

		echo "-------- > Start install ${version}"
		make install
		echo "++++++++ > make and install ${version} complete."

	done
}

echo "-------- Start --------"
build_all
echo "-------- End --------"

此脚本实现了armeabi-v7a,arm64-v8a,x86,x86_64 4个平台的编译。

  • 需要添加系统环境变量 $NDK_PATH
  • --target-os=android指定android平台。
  • make install-libs 表示只安装so文件

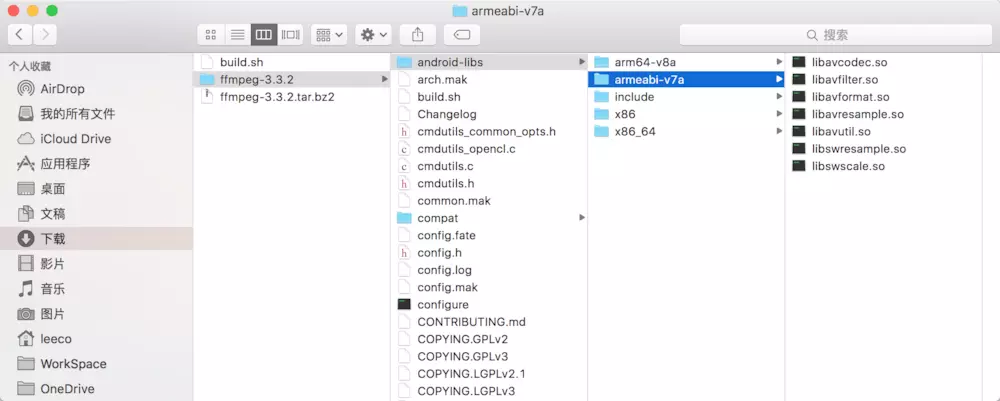

编译完成结果：
ffmpeg

第二步，项目集成

  • 新建项目，增加C++支持。手动创建jniLibs文件夹
  • 然后将上一步生成的所有文件复制到jniLibs文件夹下面
    最终目录结构：

Project
然后修改CMakeLists.txt文件，集成so。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
cmake_minimum_required(VERSION 3.4.1)

find_library(log-lib log)

add_library(native-lib
            SHARED
            src/main/cpp/native-lib.cpp )

set(JNI_LIBS_DIR ${CMAKE_SOURCE_DIR}/src/main/jniLibs)

add_library(avutil
            SHARED
            IMPORTED )
set_target_properties(avutil
                      PROPERTIES IMPORTED_LOCATION
                      ${JNI_LIBS_DIR}/${ANDROID_ABI}/libavutil.so )

add_library(swresample
            SHARED
            IMPORTED )
set_target_properties(swresample
                      PROPERTIES IMPORTED_LOCATION
                      ${JNI_LIBS_DIR}/${ANDROID_ABI}/libswresample.so )

add_library(swscale
            SHARED
            IMPORTED )
set_target_properties(swscale
                      PROPERTIES IMPORTED_LOCATION
                      ${JNI_LIBS_DIR}/${ANDROID_ABI}/libswscale.so )

add_library(avcodec
            SHARED
            IMPORTED )
set_target_properties(avcodec
                      PROPERTIES IMPORTED_LOCATION
                      ${JNI_LIBS_DIR}/${ANDROID_ABI}/libavcodec.so )

add_library(avformat
            SHARED
            IMPORTED )
set_target_properties(avformat
                      PROPERTIES IMPORTED_LOCATION
                      ${JNI_LIBS_DIR}/${ANDROID_ABI}/libavformat.so )

add_library(avfilter
            SHARED
            IMPORTED )
set_target_properties(avfilter
                      PROPERTIES IMPORTED_LOCATION
                      ${JNI_LIBS_DIR}/${ANDROID_ABI}/libavfilter.so )

add_library(avdevice
            SHARED
            IMPORTED )
set_target_properties(avdevice
                      PROPERTIES IMPORTED_LOCATION
                      ${JNI_LIBS_DIR}/${ANDROID_ABI}/libavdevice.so )

include_directories(${JNI_LIBS_DIR}/includes)

target_link_libraries(native-lib
                      avutil swresample swscale avcodec avformat avfilter avdevice
                      ${log-lib} )

简要说明：

最后再放出效果图：
Preview

示例代码：https://github.com/coopsrc/FFPlayerDemo
